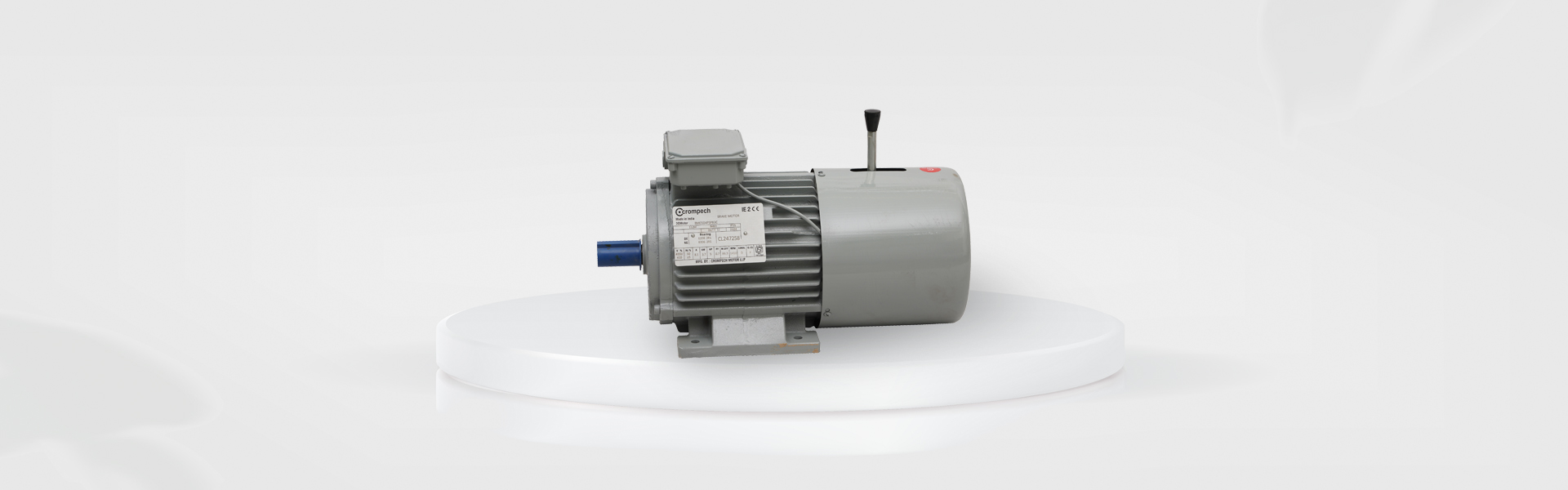

Brake Motor

Brake Motor

Crompech offers Brake motor. Brake motor covers output from as 0.37Kw to 11.0Kw in frame size 71 to 160L in 2,4,6 pole speeds. Brake motor available in foot and flange mounting.

Technical Information

Motor Type: Three Phase Induction Motor

Rated Power: 0.37 Kw to 11.0Kw (0.50 HP to 15 HP)

Rated Speed: 3000, 1500, 1000

Frequency Variation: 50Hz (±5%)

Voltage Variation: 415V or 230V (±10%)

Cooling method: IC 411

Degree of Protection: IP55

Duty: S1/Continues

Insulation Class: F

Direction Of Rotation: Anti-clockwise or clockwise as seen from the Driver end side

Ambient Temperature: 50º C

Type of enclosure: TEFC
