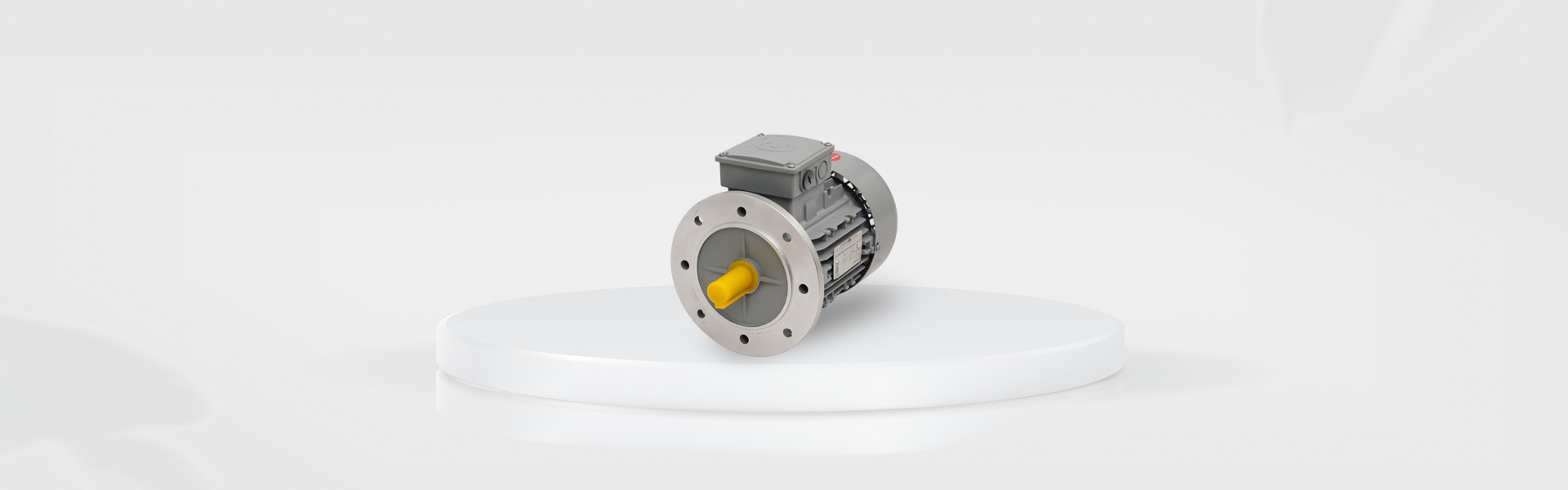

General Purpose Aluminium Motor

General Purpose Aluminium Motor

Crompech offers metric frame Motors in Aluminium die cast body construction. Aluminium die cast motor covers output from as 0.18Kw to 2.2Kw in frame size 63 to 100 in 2,4,6 pole speeds. Aluminium Motor available in foot and flange mounting.

Technical Information

Motor Type: Three Phase Induction Motor

Rated Power: 0.18 Kw to 2.2Kw (0.25 HP to 3 HP)

Rated Speed: 3000, 1500, 1000

Frequency Variation: 50Hz (±5%)

Voltage Variation: 415V or 230V (±10%)

Cooling method: IC 411

Degree of Protection: IP55

Duty: S1/Continues

Insulation Class: F

Direction Of Rotation: Anti-clockwise or clockwise as seen from the Driver end side

Ambient Temperature: 50º C

Type of enclosure: TEFC
