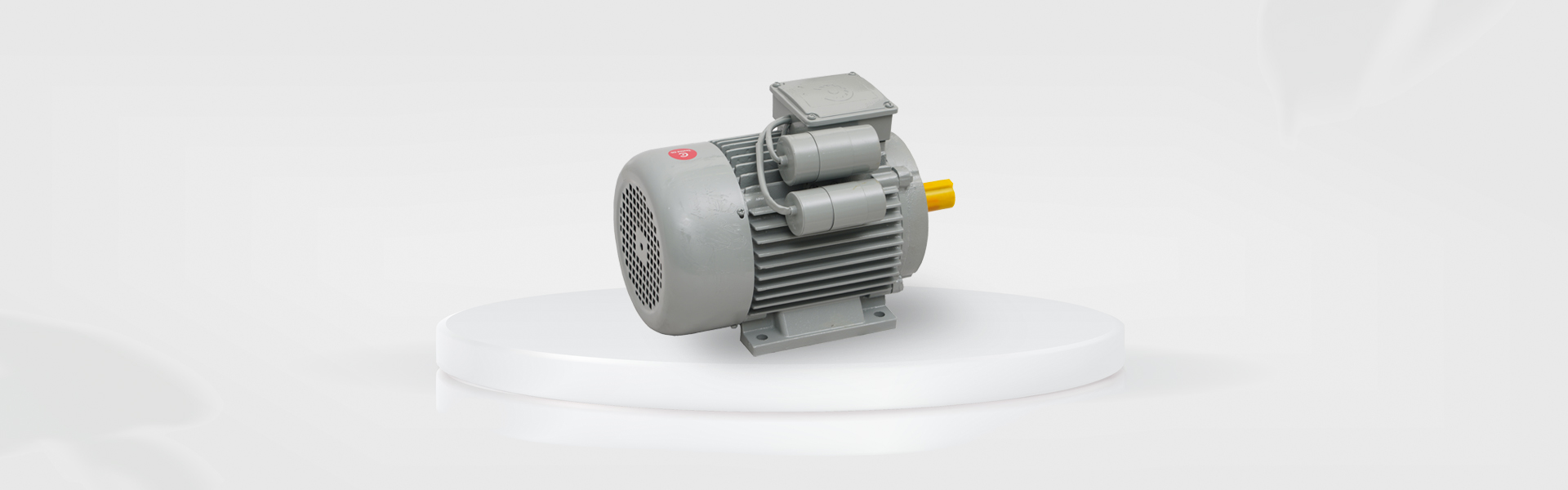

General Purpose Cast Iron Motor
![General Purpose Cast Iron Motor](http://crompechmotor.com/application/upload/ProductImage/general-purpose-cast-iron-motor-170.jpg)
Crompech offers metric frame Motors in cast iron body construction. Cast iron motor covers output from as 0.37Kw to 18.5Kw in frame size 71 to 180 in 2,4,6 & 8 pole speeds. Cast-Iron Motor available in foot and flange mounting.
Technical Information
Motor Type: Three Phase Induction Motor
Rated Power: 0.37 Kw to 18.5 Kw (0.5 HP to 25 HP)
Rated Speed: 3000, 1500, 1000, 760
Frequency Variation: 50Hz (±5%)
Voltage Variation: 415V or 230V (±10%)
Cooling method: IC 411
Degree of Protection: IP55
Duty: S1/Continues
Insulation Class: F
Direction Of Rotation: Anti-clockwise or clockwise as seen from the Driver end side
Ambient Temperature: 50º C
Type of enclosure: TEFC
